Trento

TRENTO system - is an innovation among fencing systems, consisting of a unique fixing system. Raw, durable and beautiful. Simplicity, aesthetics and durability of the construction allow for luxurious fencing of your property.

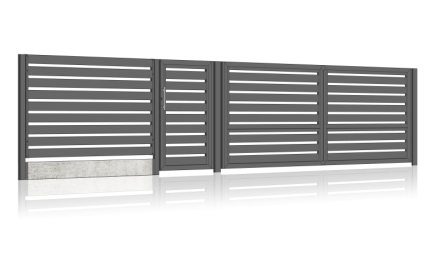

TRENTO is a fencing system which includes: columns, span, wicket, double-leaf gate (with mounting accessories) and self-supporting gate (with mounting columns). TRENTO wicket is galvanized and powder coated.

The wicket consists of 10 (9 with dimensions 100x20x1.2 mm and 1 with dimensions 40x20x1.5 mm) profiles arranged horizontally, which riveted to the flat bars, and then to the channel bars, constitute the filling of the gate. The filling is riveted to the frame made of four profiles: three 60x40x1.5 mm and one 60x40x2 mm (hinge profile). Thanks to this solution the stiffness and stability of the structure at the weight of 35 kg was achieved. The whole wicket is mounted to steel or concrete columns using dedicated hinges.

Technical data of TRENTO wicket:

The wicket height is 1400 mm and width 900 mm (including hinges 936 mm);

The wicket leaf has a riveted angle hinge pattern;

The distance between the vertical profiles (100x20x1.2 mm) is 37 mm;

The wicket leaf is suspended on hinges mounted to steel columns 100x100x3 mm or to brick columns made individually by the customer. In case of the variant with masonry columns, Jarmex company offers dedicated hinges with a flat bar for bricklaying;

The wicket is equipped with plugs for Ø20 technological holes and 30x15 mm handle plugs;

The wicket in the lock profile has holes for the lock, the cylinder insert, the insert's cover and the handle.

The double-leaf gate consists of: left leaf, right leaf, columns, actuator handles. The single leaf of the double-leaf gate consists of 10 horizontally arranged profiles (2 with dimensions 40x20x1.5 mm and 8 with dimensions 100x20x1.2 mm), which riveted to the flat bars and then to the channel bars, constitute the gate filling. The frame of the double-leaf gate consists of five profiles: one 60x40x2 mm and four 60x40x1.5. Thanks to this solution, the stiffness and stability of the structure at the set weight of 124 kg was achieved. The entire gate is mounted to steel or concrete columns using dedicated hinges. The double-leaf gate of TRENTO system is available only in an automatic version.

Technical data of a standard double-leaf TRENTO gate:

The gate height is 1400 mm, width is equal to 3980 mm (including hinges);

The width of one leaf is 1986 mm with hinges;

The gate leaves are hinged on steel columns 100x100x3 mm or brick columns made individually by the customer. In case of the variant with masonry columns, Jarmex company offers dedicated hinges with a flat bar for bricklaying.

Gate stop is welded to the right gate leaf (flat bar 80x60x3);

The double-leaf gate has plugs for Ø20 technological holes.

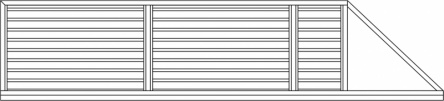

The self-supporting (sliding) gate consists of 27 horizontally positioned profiles with dimensions 100x20x1.2 mm and 40x20x1.5 mm, in two lengths (1895 mm and 625 mm). Horizontal profiles are riveted to the flat bars and then to the channels creating a door filling, mounted to the frame with blind rivets. The frame is made of 60x40x2 mm profiles and a rail beam made of 70x70x4 mm gate channel. The use of 2 mm thick frame profiles assures the rigidity and stability of the structure. The gate leaf is assembled using dedicated columns (starting, ending and A-type). The self-supporting TRENTO gate is available only in an automatic version.

Technical data of a standard self-supporting TRENTO gate:

The total height of the gate leaf is 1350 mm, the width is 6000 mm and the entry light is 4000 mm;

The starting and ending columns of the self-supporting gate are made of a sheet metal base (6 mm thick) and 80x80x2 mm profiles with appropriately prepared mounting points for accessories (e.g. top fixture, overrunning basket);

The "A-type" column of the self-supporting gate is made of a sheet metal base (6 mm thick) and 80x40x3 mm profiles with appropriately prepared mounting points for accessories - guide rollers and drive;

The base welded inside the "A-type" column is a fastening element for the drive;

The height of the columns is 1450 mm for the starting column, 1450 mm for the "A-type" column and 500 mm for the ending column;

The self-supporting gate is equipped with plugs for Ø20 technological holes and plugs for 60x40 gate bottom profile;

TRENTO span consists of 9 horizontally arranged profiles 100x20x1.2 mm, which are connected with flat bars and channels (by means of rivets) to form a span in the set. Angle irons are the additional element constituting the span reinforcement. Such solution allows to obtain stiffness and stability of the structure at the weight of 43 kg. The whole set is mounted to steel or concrete columns using dedicated fixtures (TRENTO span fixture).

Technical data of TRENTO span:

The width of the span is 2000 mm and the height 1200 mm;

The distance between horizontal profiles (100x20x1.2 mm) is 37 mm;

The special feature of TRENTO span is the absence of welded joints, which have been replaced by riveted joints.

The fence is available in galvanized version (flat bars and channels) according to the standard: PN-EN-ISO 2081:2011 and hot-dip galvanized (frame and filling profiles) according to the standard: EN-ISO 1461 DIN 50976 tZnO and powder-coated according to EN-ISO 12944-5 in RAL colours 7021 and 9005..
