Roma

Basic information Technical data Files to download

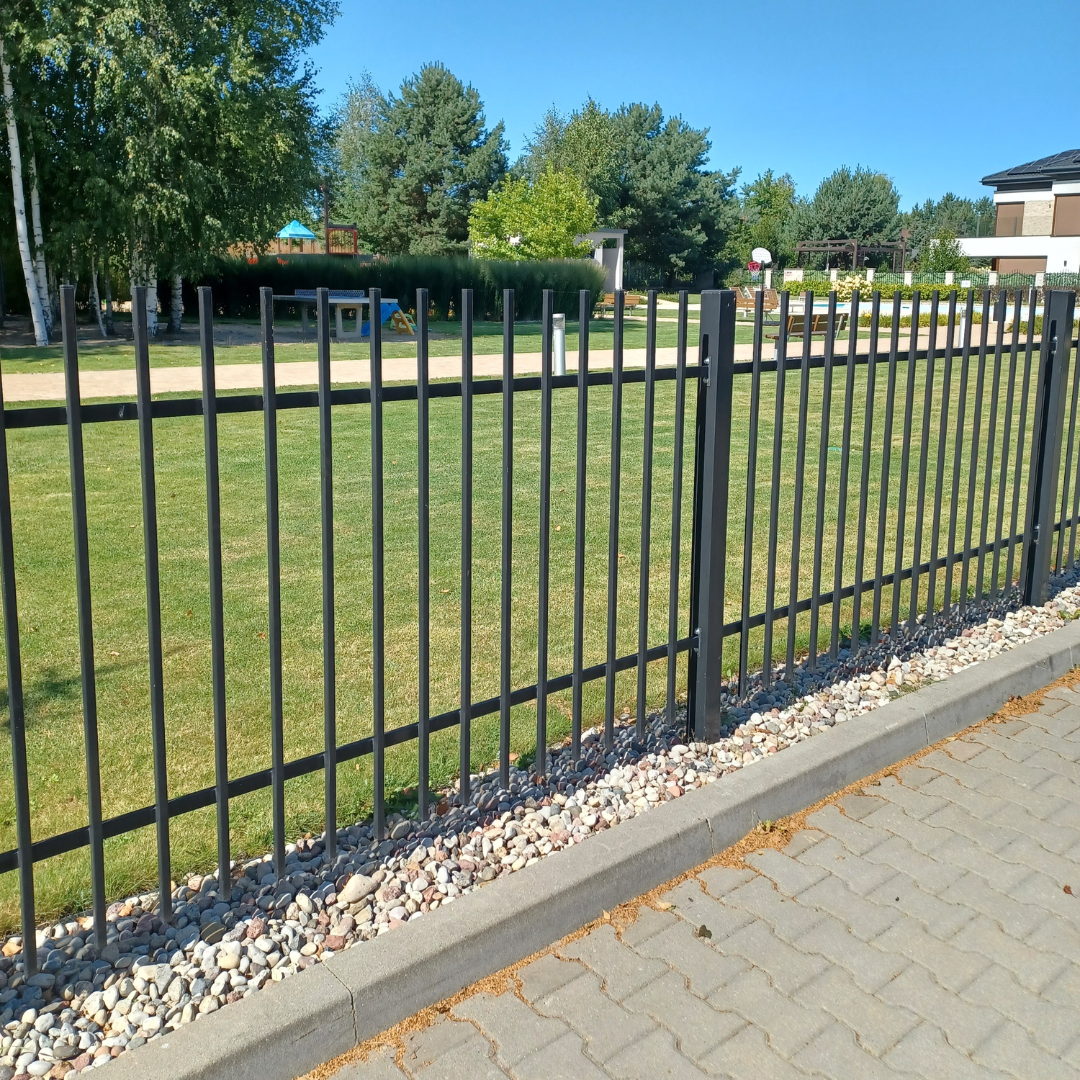

ROMA – simple and classic fence with vertical filling made of 18x18mm profiles spaced every 10cm. For Customers looking for simple forms, harmonizing with modern architecture of private houses, public buildings or recreational areas.

The fencing set consists of a span, gate, wicket, steel columns for spans of 70x70 profile and steel columns for the gate, wicket of 100x100 profile. Thanks to the use of hinges, handles of our company, it is possible to install a span, wicket, gate to the columns of split blocks. The system is protected against corrosion with hot-dip zinc and powder paint (DUPLEX). Available in smooth gloss or matt structure finish.

Advantages
Gallery
Roma System
Technical data
Dimensions of the double-leaf gate entry light: 3000 or 4000mm, height: 1400mm
Span dimensions Width: 2000mm, height: 1200mm
Wicket dimensions width: 936mm, height: 1400mm
Dimensions of the self-supporting gate entry light: 4000mm, height: 1400mm, total leaf length: 6000mm
The system also includes:

Column / span 70 x 70 x 2 H = 2200 mm

Gate column / wicket 100 x 100 x 2 H = 2200

ROMA wicket

ROMA wicket

The wicket is made of steel, vertically arranged closed profiles 18x18x1,2 mm (6 pcs) welded to horizontal profiles 40x20x2 mm and to a frame consisting of a profile 40x40x2 mm (profile with hinges) and two profiles 40x40x1,5 mm (profile of lock box and lower profile) . Thanks to this solution the rigidity and stability of the structure was achieved at a weight of only 16 kg. The entire wicket is mounted to steel or concrete columns using dedicated hinges.



Technical data of ROMA wicket:

  • Wicket height is 1400 mm and width 900 mm (including hinges 936 mm);

  • The distance between the vertical profiles is 100 mm;

  • The wicket wing is hinged on steel columns 100x100x2 mm or brick columns made individually by the customer. In case of the variant with masonry columns Jarmex company offers dedicated hinges with a flat bar for bricklaying;

  • The wicket has plugs for technological holes Ø10 and Ø12 and plugs for vertical frame profiles 40x40 ;

  • The ends of vertical profiles (18x18x1.2 mm) of the wicket are equipped with black plastic plugs;

  • The wicket in the lock profile has holes for the handle, cylinder and plates.



The fence is available in a standard hot dip galvanized version: EN - ISO 1461 DIN 50976 TZnO and powder-coated according to EN - ISO 12944 - 5 in RAL colours according to JARMEX catalogue. The ROMA system is perfect for fencing private properties and public buildings.

ROMA span

ROMA span

The ROMA SPAN is made of steel, vertically arranged closed profiles 18x18x1.2 mm welded to 30x15x1.5 mm crosswise closed profiles. Such a solution allows to obtain appropriate rigidity and stability of the structure at the weight of only 16 kg. The set is mounted to steel or concrete columns using dedicated holders (Modena holder).

Technical data of ROMA span:

  • The width of the span is 2000 mm and the height 1200 mm,
  • The distance between the vertical profiles (16 in one span) is 100 mm;
  • The ends of vertical profiles (18x18x1.2 mm) of span have black plastic plugs.

DOUBLE-LEAF ROMA GATE

DOUBLE-LEAF ROMA GATE

The ROMA system is hot-dip galvanized and powder coated. The double-leaf gate consists of:

  • left leaf,
  • right leaf,
  • vertical valve,
  • bottom bolt

A single leaf of double-leaf gate consists of 15 18x18x1.2 mm vertical profiles welded to two 40x20x2 mm transverse profiles and a frame consisting of three 40x40x2 mm profiles. Thanks to this solution, the rigidity and stability of the structure was achieved at a weight of only 62.7 kg. The entire gate is mounted to steel or concrete columns using dedicated hinges. There is a possibility of automation and the gate can be hung on both steel and concrete columns.

Technical data of standard double-leaf ROMA gate:

  • The gate height is 1400 mm, width is 2980 mm (3-metre gate) or 3980 mm (4-metre gate);
  • The width of one leaf a is 1485 (3-metre gate) or 1985 mm (4-metre gate);
  • The gate leaves are hinged on steel columns 100x100x2 mm or brick columns made individually by the customer. In case of the variant with masonry columns, Jarmex company offers dedicated hinges with a flat bar for bricklaying.
  • The gate's stop (flat bar 80x60x3), bottom bolt sleeves and horizontal gate valve sleeve are welded to the right gate leaf;
  • The horizontal valve sleeves and padlock eye are welded to the left gate leaf;
  • The double-leaf gate has plugs for technological holes Ø10 and Ø12 and plugs for vertical frame profiles 40x40;
  • Vertical profile ends (18x18x1.2 mm) of the gate have black plastic plugs.

SELF-SUPPORTING ROMA GATE

SELF-SUPPORTING ROMA GATE

The self-supporting (sliding) gate consists of 60x40x2 mm profiles forming a frame and 37 vertical 18x18x1.2 mm profiles welded to it. A running beam made of 70x70x4 mm door channel is welded to the frame. The structure rigidity and stability is achieved thanks to the use of 2 mm thick frame profiles. The gate leaf is assembled using dedicated columns (starting, ending and "A - type" columns) . It is possible to automate the gate by adding a drive and a nylon toothed bar. Both manual and automatic gates, as for the direction of opening, are available in left and right versions.

Technical data of self-supporting ROMA gate:

  • The total height of the gate leaf is 1,370 mm, the width is 6,000 mm and the entry light is 4,000 mm;
  • The set of the self-supporting gate for manual sliding includes a hook lock, a cylinder insert and a handle ;
  • The starting and ending column of the self-supporting gate is made of sheet metal base (6 mm thick) and 80x80x2 mm profiles with properly prepared mounting points for accessories (e.g. top fixture, overrun basket);
  • The "A - type" column of the self-supporting gate is made of a sheet metal base (6 mm thick) and 80x40x3 mm profiles with appropriately prepared mounting points for accessories - guide rollers (and drive in case of an automatic gate);
  • The base welded inside the "A-type" column is a fastening element for the gate drive (in case of an automatic gate);
  • The height of the columns is equal to 1460 mm - starting column, 1270 mm - A-type colums, 500 mm - ending column;
  • The self-supporting gate has plugs for technological holes Ø 20 and plugs for the bottom profile 60x40 ;
  • -Vertical profile ends (18x18x1,2 mm) of the gate have black plastic plugs.
