The use of PPW fence panels is excellent for fencing off sports grounds, warehouses, industrial plants and airports.

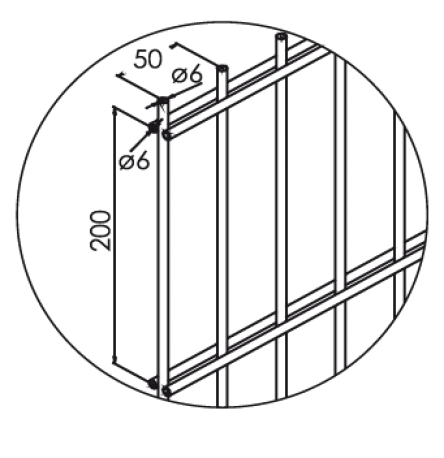

Ease of installation regardless of ground level is ensured by connector elements, the number of which depends on the height of the fence. The thickness of the wire, the size of the meshes and the bends in the mesh ensure the rigidity and durability of the completed fence.
The fencing panels are protected with: hot-dip galvanised coating (galvanised version) according to EN-ISO 1461 DIN 50976 tZnO or galvanised and powder-coated (painted version) according to EN-ISO 12944-5 in RAL colours: ■ RAL 7016, ■ RAL 7016 mat, ■ RAL 9005, ■ RAL 9005 mat, ■ RAL 6005 and other colours at an extra charge.
| Dimensions of the double-leaf gate | ||
|---|---|---|
| . | Recommended column height: | Number of mounting brackets: |
| 630 mm | 1100 mm | 2 |
| 830 mm | 1300 mm | 2 |
| 1030 mm | 1500 mm | 2 |
| 1230 mm | 1700 mm | 2 |
| 1430 mm | 2000 mm | 3 |
| 1630 mm | 2200 mm | 3 |
| 1830 mm | 2400 mm | 3 |
| 2030 mm | 2700 mm | 4 |
| 2230 mm | 2900 mm | 4 |
| 2430 mm | 3000 mm | 4 |
